Shiley Tracheostomy Tube XLT Cuffed
Shiley Tracheostomy Tube XLT Cuffed
Medtronic
SKU:MST-MTR-50XLTCP

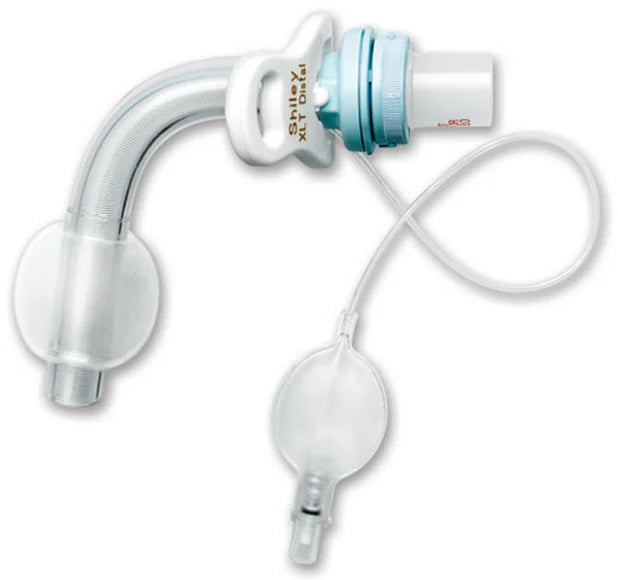

The Shiley™ XLT Extended-Length Cuffed Tracheostomy Tube by Medtronic is engineered for patients with challenging anatomies that require an off-the-shelf alternative to custom tracheostomy tubes. Available in both proximal and distal extension configurations across four adult sizes, the XLT cuffed series provides a precise, comfortable fit for a wide range of clinical needs.
Choose proximal extension (XLTCP) to accommodate patients with a full or thick neck where increased skin-to-tracheal-wall distance is a factor. Choose distal extension (XLTCD) for conditions such as tracheal stenosis or malacia that require additional distal length.
Key Features
- Cuffed dual-cannula design with included disposable inner cannula (DIC)
- High-volume, low-pressure cuff to reduce the risk of tracheal damage
- Flexible, free-swiveling neck flange for improved patient comfort and easy stoma inspection
- Unique twist-lock mechanism secures the inner cannula quickly and safely
- Flexible disposable inner cannula conforms to the shape of the outer cannula
- Latex-free construction
- Sterile and individually packaged
- Adult sizing
Specifications

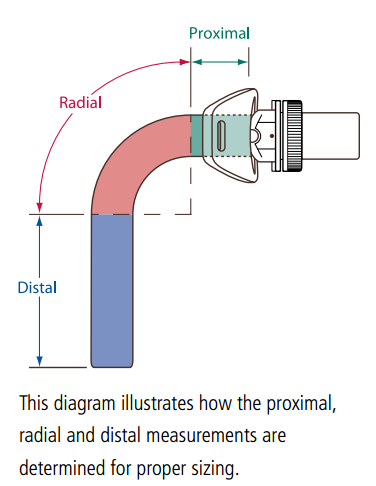

| Catalog # | Extension | I.D. (mm) | O.D. (mm) | Total Length (mm) | Proximal Length (mm) | Radial Length (mm) | Distal Length (mm) | Inner Cannula |
|---|---|---|---|---|---|---|---|---|
| 50XLTCP | Proximal | 5.0 | 9.6 | 90 | 20.0 | 37.0 | 33.0 | 50XLTIN |
| 50XLTCD | Distal | 5.0 | 9.6 | 90 | 5.0 | 37.0 | 48.0 | 50XLTIN |
| 60XLTCP | Proximal | 6.0 | 11.0 | 95 | 23.0 | 38.0 | 34.0 | 60XLTIN |
| 60XLTCD | Distal | 6.0 | 11.0 | 95 | 8.0 | 38.0 | 49.0 | 60XLTIN |
| 70XLTCP | Proximal | 7.0 | 12.3 | 100 | 27.0 | 39.0 | 34.0 | 70XLTIN |
| 70XLTCD | Distal | 7.0 | 12.3 | 100 | 12.0 | 39.0 | 49.0 | 70XLTIN |
| 80XLTCP | Proximal | 8.0 | 13.3 | 105 | 30.0 | 40.0 | 35.0 | 80XLTIN |
| 80XLTCD | Distal | 8.0 | 13.3 | 105 | 15.0 | 40.0 | 50.0 | 80XLTIN |
